Silicone rubber insulation cover for extra-large terminals & clamps — G10-07
Insulation Cover · Terminal Series

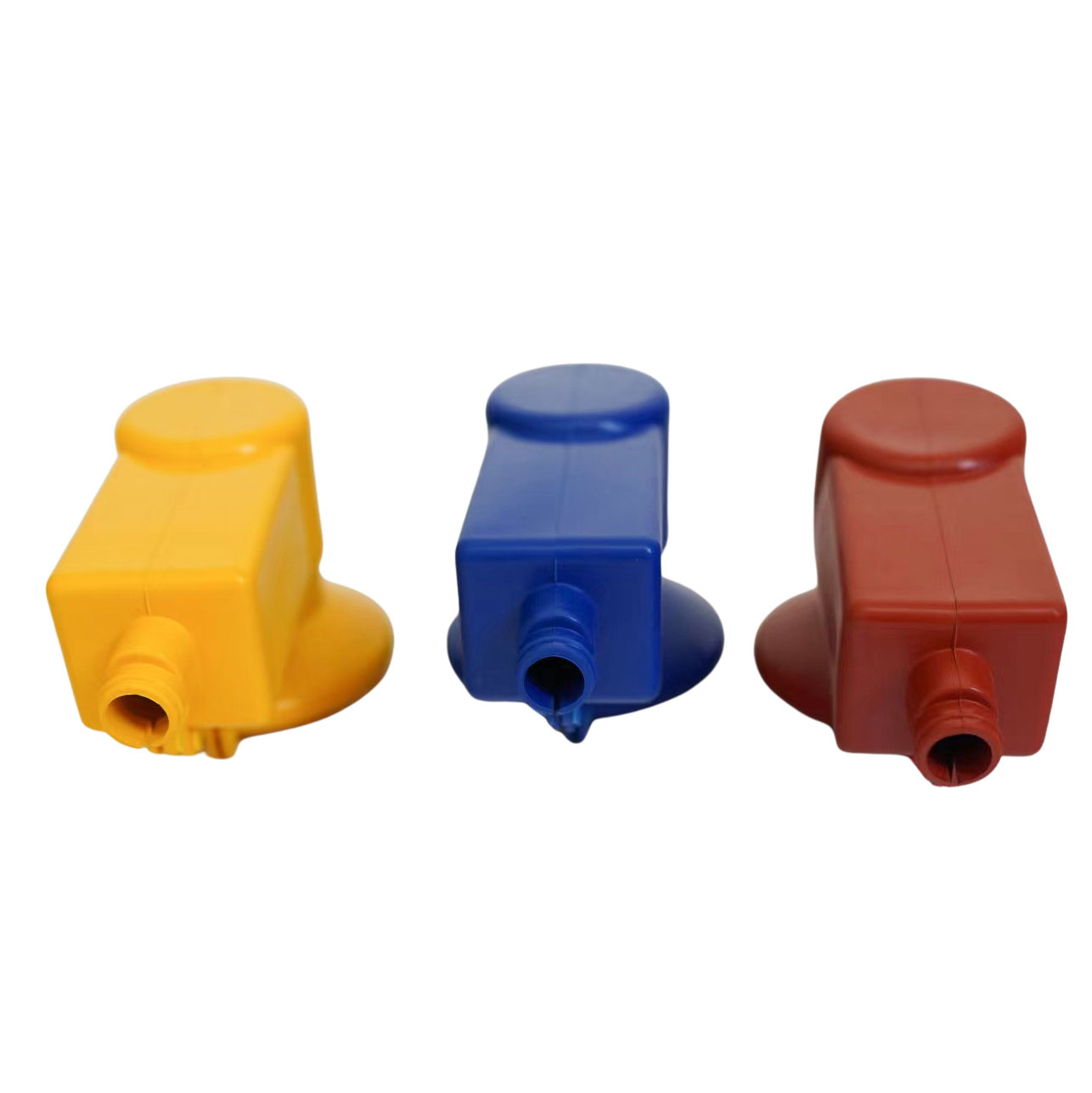

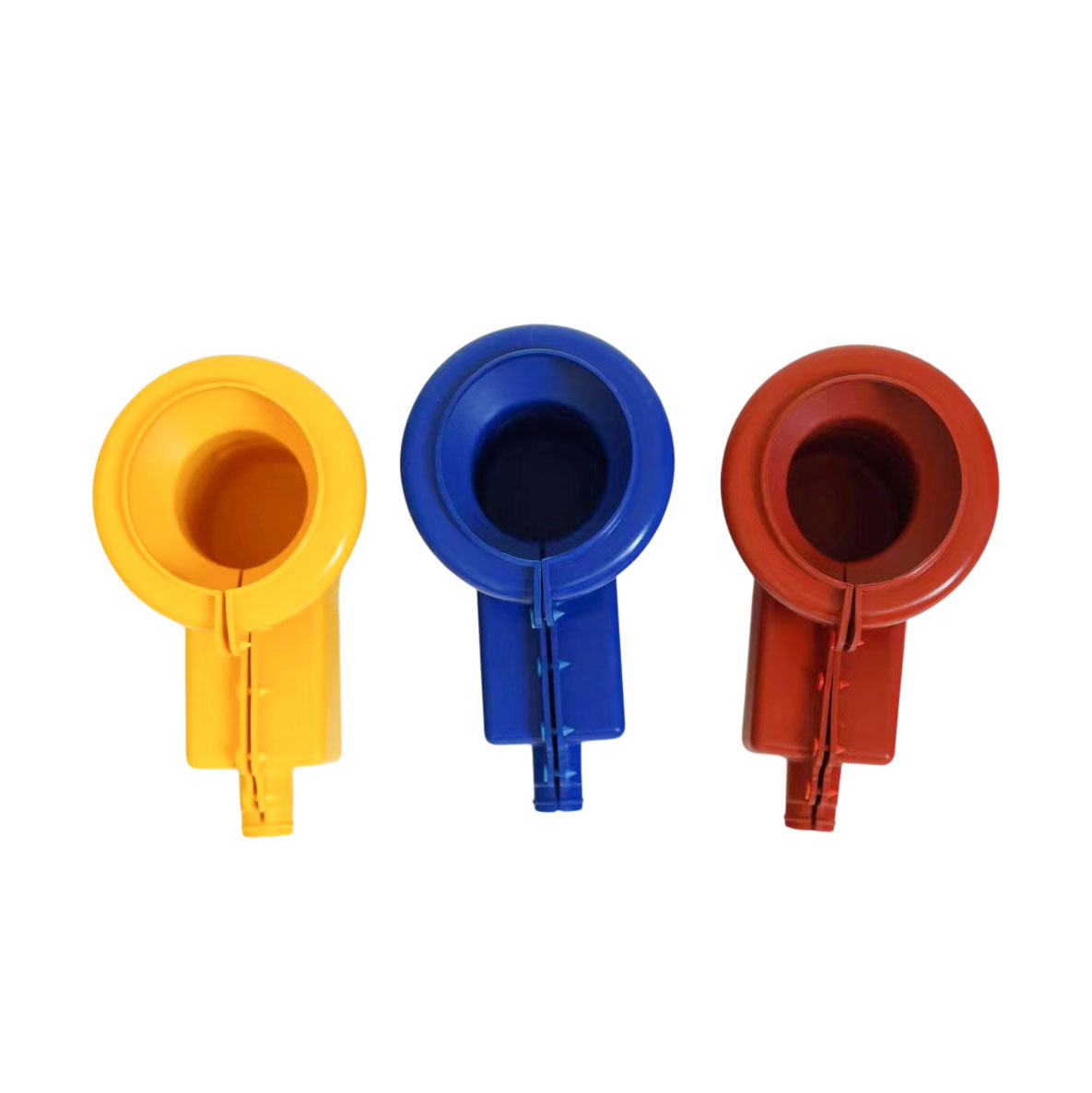

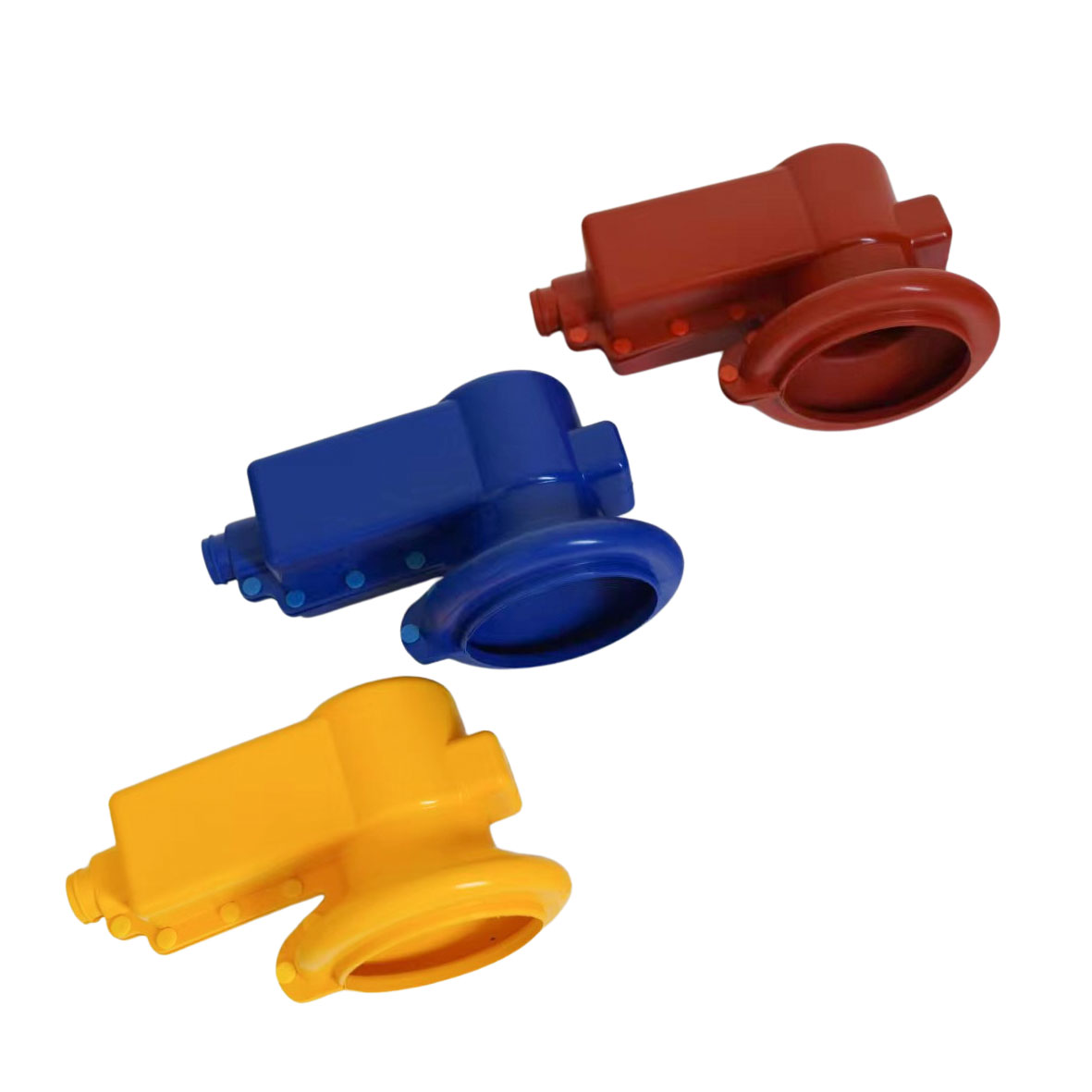

G10-07 — Extra-Large Terminal Insulation Cover
The largest cover in the G10 terminal series, molded for the biggest cable lugs, busbar terminals and heavy bolted connections above 300 mm² — designed for main incomer cables, substation bus joints, and large transformer terminations.
ModelG10-07
SizeExtra-Large — for terminals > 300 mm²
MaterialHTV Silicone Rubber
Package3 PCS / SET
✔ OEM / ODM · ✔ In-house tooling & molding · ✔ Type-test reports on request · ✔ Reply in 24h
Overview
The G10-07 is the extra-large cover in the G10 terminal insulation series — the biggest cover in the range, molded for the largest cable lugs, busbar terminals and bolted connections above 300 mm² conductor size. These are the heavyweight connections: main substation incomer cables, large power transformer terminations, MV busbar joints, and generator connections — connections that carry thousands of amps and where a single flashover can have catastrophic consequences.
At this scale, the terminal itself can be the size of a fist — and the bare metal surface area presents a substantial phase-to-ground and phase-to-phase risk. The G10-07’s robust, thick-wall HTV silicone body covers the entire connection assembly with generous creepage distance and a hydrophobic surface that actively prevents pollution tracking on the large metal surface — the single biggest failure mechanism for big outdoor terminals.
The largest sibling in the 4-size G10 family (02 → 05 → 06 → 07). Molded from HTV silicone — hydrophobic, UV-stable, anti-tracking, flame-retardant. Slip-on cap design with heavy-wall construction; live-line installable with appropriate hot-stick techniques for the terminal size. Full custom dimensional adjustments and OEM branding available — most G10-07 orders are custom-molded to the customer’s specific terminal dimensions.
Specifications
| Model | G10-07 |
|---|---|
| Size | Extra-Large — for terminals and cable lugs > 300 mm² |
| Material | High-Temperature Vulcanized (HTV) Silicone Rubber (heavy-wall) |
| Designed For | Extra-large bolted terminals · main incomer lugs · power transformer terminations · MV bus joints · generator connections |
| Key Properties | Hydrophobic · UV-resistant · anti-tracking · flame-retardant · self-extinguishing |
| Operating Temperature | -60 °C ~ +200 °C |
| Color | Red (standard); Grey and custom available |
| Installation | Slip-on / cap-type (heavy-wall); live-line installable |
| Package | 3 PCS / SET |
| Standard | IEC / GB compliant; ISO 9001 factory |
| Customization | Custom-molded to your specific terminal/lug dimensions — standard on G10-07 orders |
📄 DatasheetExtra-large terminal dimensional worksheet and G10 series selection guide.Get the Datasheet →
Key Features
🏗️
Heavy-Wall Construction
Thickest silicone wall in the G10 range — built for the biggest, highest-current, most critical terminals in your network.
📐
Custom-Molded as Standard
Most G10-07 orders are custom-molded to your exact terminal dimensions — send us a drawing or sample for a perfect fit.
⚡
Maximum Creepage
Generous creepage distance on the oversized silicone body — the highest insulation margin in the G10 series.
🛡️
Critical-Connection Protection
Designed for connections where failure is not an option — main incomers, transformer primaries, generator terminals.
☀️
Permanent Outdoor Rating
UV-stable, ozone-resistant, -60°C to +200°C — installed once, protects for decades.
📊
Complete G10 Family
G10-02 through G10-07 — one supplier covers every terminal size in your network, from control wire to main incomer.
Applications
🏛️
Main Substation Incomers
Insulating the largest cable terminations where MV feeders enter primary substations — the highest-consequence connection point.
🔌
Power Transformer Terminations
Covering MV and HV-side bushing terminals on power transformers up to several MVA.
🔗
MV Busbar Joints & T-Offs
Insulating bolted busbar connection joints in main switchgear bus runs.
🏭
Heavy Industrial & Generation
Generator connections, large motor terminals, and heavy industrial feeder terminations.
Frequently Asked Questions
Is G10-07 always custom-molded?
In practice, yes — most terminals above 300 mm² are application-specific, and we mold G10-07 to your terminal dimensions. Send us the lug drawing, bolt size, and cable OD and we’ll produce covers that fit perfectly. Lead time for custom tooling: typically 10–12 days.
How does G10-07 compare to using the D10-09 bushing cover?
G10-07 is a terminal-end cap — it covers a single cable lug at a dead-end connection point. D10-09 is a bushing cover — it wraps the top of a bushing terminal where the conductor enters from above. They serve different connection geometries. Send a photo and we’ll identify which cover type you need.
What voltage class is G10-07 rated for?
Distribution class up to 40.5 kV. The thick-wall silicone provides generous insulation for the terminal size. For higher voltages or special applications, contact us with your spec — we can increase wall thickness or creepage distance.
Can G10-07 be color-coded for phase identification?
Yes — we can produce G10-07 in red, yellow, blue (standard phase colors), grey, or any custom color. Phase-color sets (R/Y/B) are common for large transformer terminations.
MOQ and lead time for custom G10-07?
Low-MOQ samples (1–3 sets) for fit-check: 10–15 days with custom tooling. Production volumes: 15–20 days. Because G10-07 is typically custom-molded, we recommend ordering fit-check samples first before full production.
Need G10-07 for Your Largest Terminals?
Send terminal drawing, lug dimensions or sample — we’ll custom-mold and quote within 24h.
