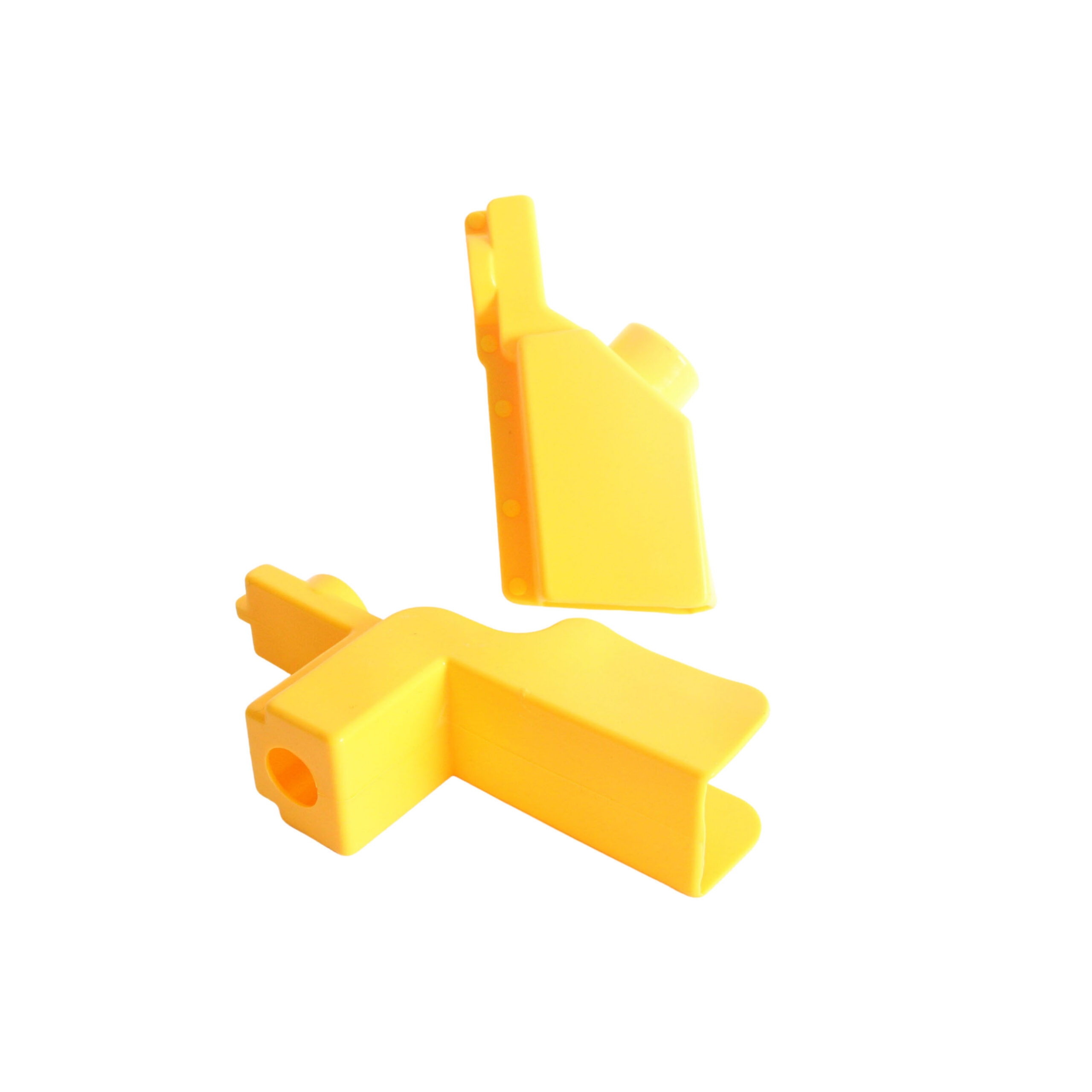

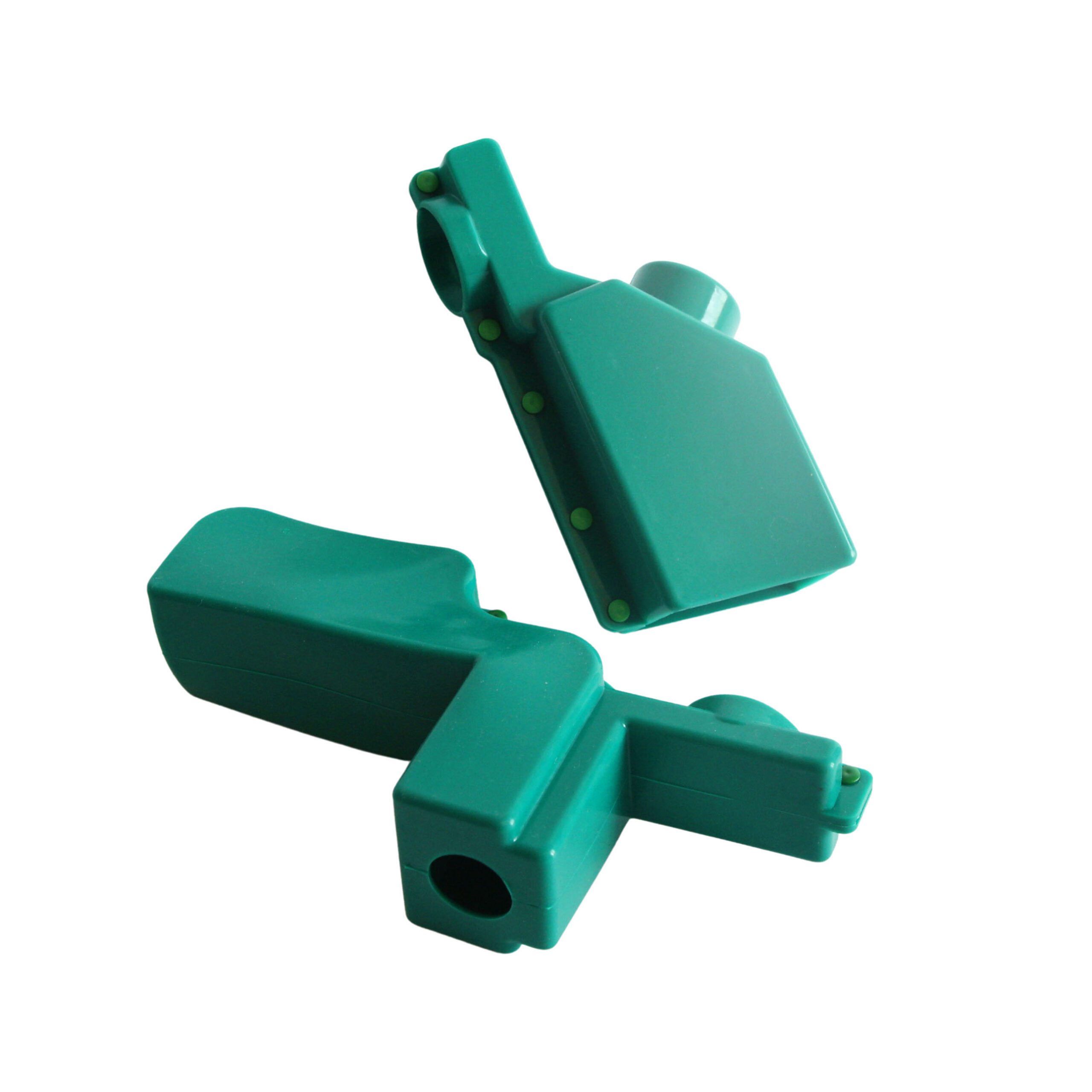

BLQ-DL — Arrester Cover with Down-Lead Port
A variant of the BLQ arrester cover series with an integrated down-lead (DL) port — designed for surge arresters where the ground-lead connection also needs insulating. Molds around both the arrester terminal and the cable connection point for complete insulation coverage.
✔ OEM / ODM · ✔ In-house tooling & molding · ✔ Type-test reports on request · ✔ Reply in 24h
Overview
The BLQ-DL is a specialized variant in the BLQ arrester cover family — the “DL” suffix indicates an integrated down-lead port. Many surge arresters, particularly those with external ground-lead (down-lead) cables, have an exposed metal connection point where the ground cable attaches to the arrester base. Standard BLQ covers insulate only the arrester terminal; BLQ-DL extends the insulation coverage to include this cable connection point as well.
This extra coverage is especially important in wildlife-prone corridors and polluted environments, where the bare metal of the down-lead lug is just as likely to attract bird contact or accumulate conductive contamination as the arrester terminal itself. The integrated port sleeves the cable while sealing the lug — all in one molded silicone piece.
Molded from HTV silicone rubber with the same hydrophobic, UV-stable, anti-tracking and flame-retardant properties as the rest of the BLQ series. Slip-on installation, live-line compatible, and fully customizable to your arrester and cable dimensions.
Specifications
| Model | BLQ-DL |
|---|---|
| Material | High-Temperature Vulcanized (HTV) Silicone Rubber |
| Designed For | Surge arresters with external ground-lead / down-lead cable connection |
| Key Properties | Hydrophobic · UV-resistant · anti-tracking · flame-retardant · self-extinguishing |
| Operating Temperature | -60 °C ~ +200 °C |

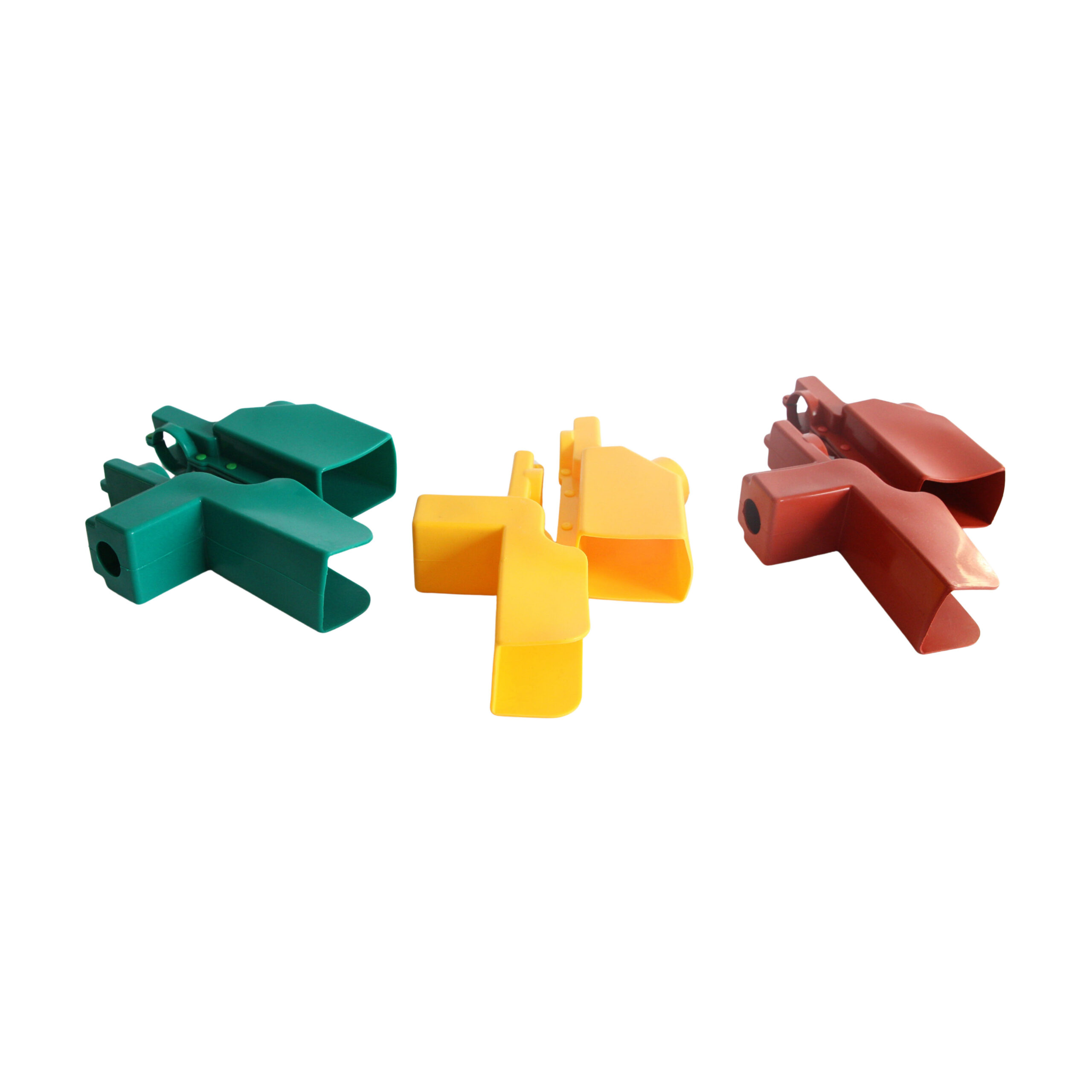

| Color | Red (standard); Grey and custom available |
| Installation | Slip-on; live-line installable with hot-stick |
| Package | 3 PCS / SET |
| Standard | IEC / GB compliant; ISO 9001 factory |
| Customization | Port diameter per cable size; custom color, branding, dimensions |
Key Features
Integrated Down-Lead Port
Covers both the arrester terminal AND the ground-lead cable lug — full insulation for the most exposed part of the arrester.
Complete Terminal Protection
No bare metal exposed — eliminates the weak point where cable lugs attract wildlife and pollution.
Cable-Port Custom Sizing
Down-lead port dimensioned to your cable diameter — snug fit with no gap for moisture or animal ingress.
All-Weather Silicone
Hydrophobic HTV silicone — water beads off, UV-stable, anti-tracking, -60°C to +200°C.
Flame-Retardant
Self-extinguishing material — won’t sustain combustion around energized equipment.
Slip-On Install
One-piece cover slips over the arrester and cable — no heat, adhesive, or special tools.
Applications
Overhead Lines with Down-Lead Arresters
Distribution lines where arresters use external ground-lead cables to connect to the earth electrode.
High Wildlife-Risk Areas
Critical for lines through bird migration corridors and forested areas — covers the most perch-prone metal parts.
Substation Arrester Banks
Station arresters with dedicated down-lead connections to the station ground grid.
Polluted & Coastal Zones
Extra coverage for the ground-lead lug — a common tracking initiation point in salt-spray and industrial pollution.
Frequently Asked Questions
What makes BLQ-DL different from BLQ-1?
What cable sizes does the DL port accommodate?
Can BLQ-DL be installed on an already-connected arrester?
Is BLQ-DL available in the larger BLQ-2 body size?
What’s the MOQ and lead time for BLQ-DL?
