Insulation Cover · Fuse Cutout Series

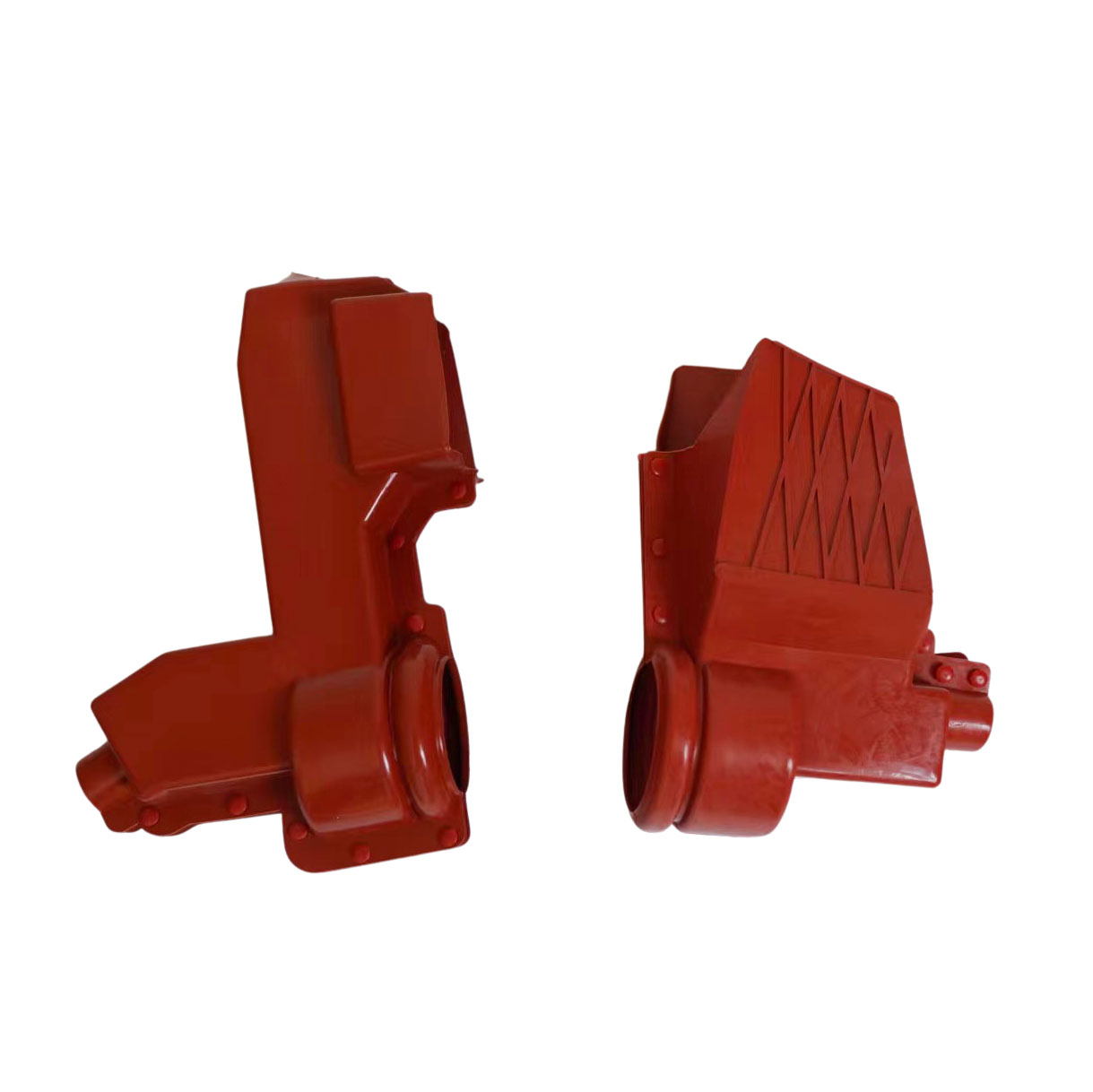

FCO-1 — Fuse Cutout Insulation Cover
Purpose-molded HTV silicone-rubber cover for drop-out fuse cutout assemblies. Insulates the top contact (fuse-link terminal) and bottom hinge of the cutout — two of the most exposed live parts on a distribution line — preventing flashover, wildlife contact, and pollution-induced tracking.
ModelFCO-1
MaterialHTV Silicone Rubber
Designed ForDrop-out fuse cutouts (11–38 kV)
Package3 PCS / SET
✔ OEM / ODM · ✔ In-house tooling & molding · ✔ Type-test reports on request · ✔ Reply in 24h
Overview
The FCO-1 is a silicone-rubber insulation cover specifically molded for drop-out fuse cutout assemblies used on 11–38 kV overhead distribution lines. A fuse cutout has two critical exposed live points: the top contact (where the fuse link connects to the line-side terminal) and the bottom hinge (where the fuse tube pivots). Both are vulnerable to wildlife bridging — birds perching on the top contact or animals climbing across the hinge — which is a leading cause of nuisance fuse operations and line outages.

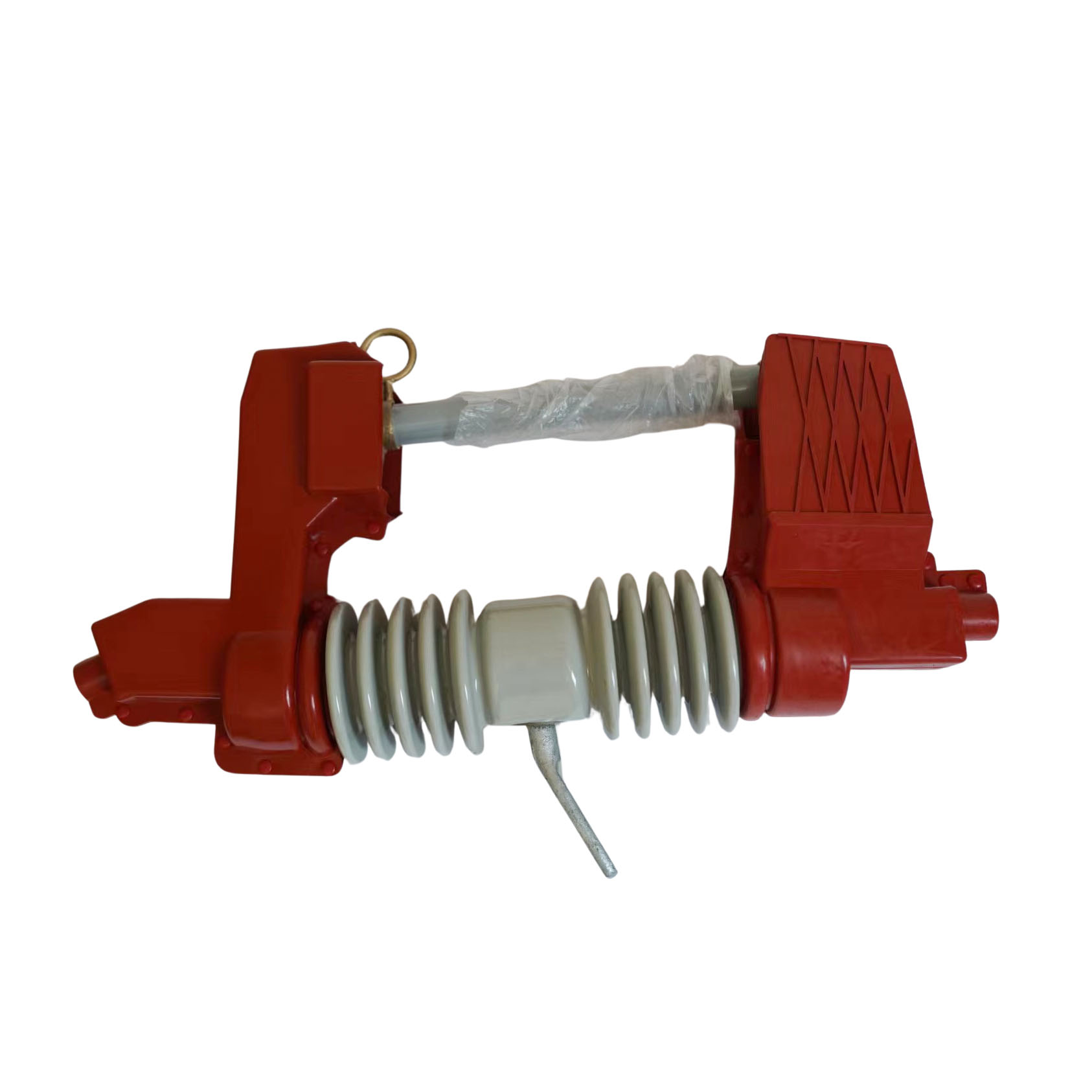

The FCO-1 cover wraps these live parts in a single molded piece of HTV silicone rubber, creating an insulating barrier that stops phase-to-ground flashover without interfering with the cutout’s normal drop-out operation. The cover is slit to allow the fuse tube to swing open and drop freely when the fuse link melts — it protects the live parts without compromising the cutout’s protective function.
Molded with the same hydrophobic, UV-stable, anti-tracking and flame-retardant HTV silicone as all Jiadian covers. Fits standard polymer and porcelain drop-out fuse cutouts; custom dimensional adjustments for non-standard cutouts available. Slip-on installation, live-line compatible.
Specifications
| Model | FCO-1 |
|---|---|
| Material | High-Temperature Vulcanized (HTV) Silicone Rubber |
| Designed For | Drop-out fuse cutout assemblies — polymer and porcelain types, 11–38 kV |
| Coverage | Top contact (fuse-link terminal) + bottom hinge assembly |
| Key Properties | Hydrophobic · UV-resistant · anti-tracking · flame-retardant · self-extinguishing |
| Operating Temperature | -60 °C ~ +200 °C |
| Color | Red (standard); Grey and custom available |
| Installation | Slip-on with slit for fuse tube clearance; live-line installable |
| Package | 3 PCS / SET (covers one 3-phase cutout bank) |
| Standard | IEC 60282-2 / GB compliant; ISO 9001 factory |
| Customization | Molded to your specific cutout model, color, OEM label |
📄 DatasheetFull dimensional drawings, cutout compatibility list and installation guide.Get the Datasheet →
Key Features
🔻
Purpose-Molded for Cutouts
Designed around the exact geometry of drop-out fuse cutouts — covers both the top contact and bottom hinge without impeding fuse operation.
🔓
Non-Blocking Drop-Out
The cover is slit and shaped to let the fuse tube swing open freely when the fuse link melts — full protection, zero interference with the cutout’s protective function.
🐦
Anti-Perch Design
Shields the top-contact terminal — the most common perch point for birds on fuse cutouts — eliminating a major cause of nuisance fuse blowing.
☀️
Weatherproof Silicone
Hydrophobic, UV-stable, anti-tracking HTV silicone — performs from -60°C to +200°C in any outdoor environment.
🔥
Flame-Retardant & Arc-Safe
Self-extinguishing material — safe near the arc zone when a fuse operates. Will not sustain combustion.
🔧
Live-Line Installable
Slip-on design installs in minutes with hot-stick techniques — no need to de-energize the line.
Applications
🗼
Overhead Distribution Lines
Insulating fuse cutout terminals on 11–38 kV feeders — the most common installation point for FCO-1 covers.
🔌
Transformer Protection Points
Covering cutouts on pole-mounted transformer tap-offs where a single bird-caused trip can black out a customer.
🐦
Avian-Prone Corridors
Critical on lines through migration flyways, wetlands and forest edges — where fuse cutout tops are prime perching spots.
🏛️
Substation Feeders
Cutout protection on outgoing feeder bays in distribution substations.
Frequently Asked Questions
Will the cover prevent the fuse tube from dropping out?
No — the FCO-1 is designed with a slit and clearance that allows the fuse tube to swing open and drop freely when the fuse link operates. It provides insulation coverage without interfering with the cutout’s protective function.
What cutout brands/models does FCO-1 fit?
FCO-1 is molded for the most common drop-out fuse cutout body dimensions (polymer and porcelain). If you use a specific brand (e.g., Hubbell/Chance, S&C, or local Chinese models), send us the model number — we’ll confirm fit or adjust the mold.
Does FCO-1 come as a set for all 3 phases?
Yes — 3 PCS/SET covers one 3-phase cutout bank (3 cutouts × 1 cover each). Single-phase quantities available on request.
Can it be installed on an energized line?
Yes — the slip-on design and silicone flexibility allow installation with standard hot-stick tools on live lines, following standard live-line work safety procedures.
What about arc products when the fuse blows — will the cover burn?
The HTV silicone is flame-retardant and self-extinguishing. The cover is positioned to insulate the terminals, not to contain the arc. It is designed to survive normal fuse operations and outdoor exposure for years.
