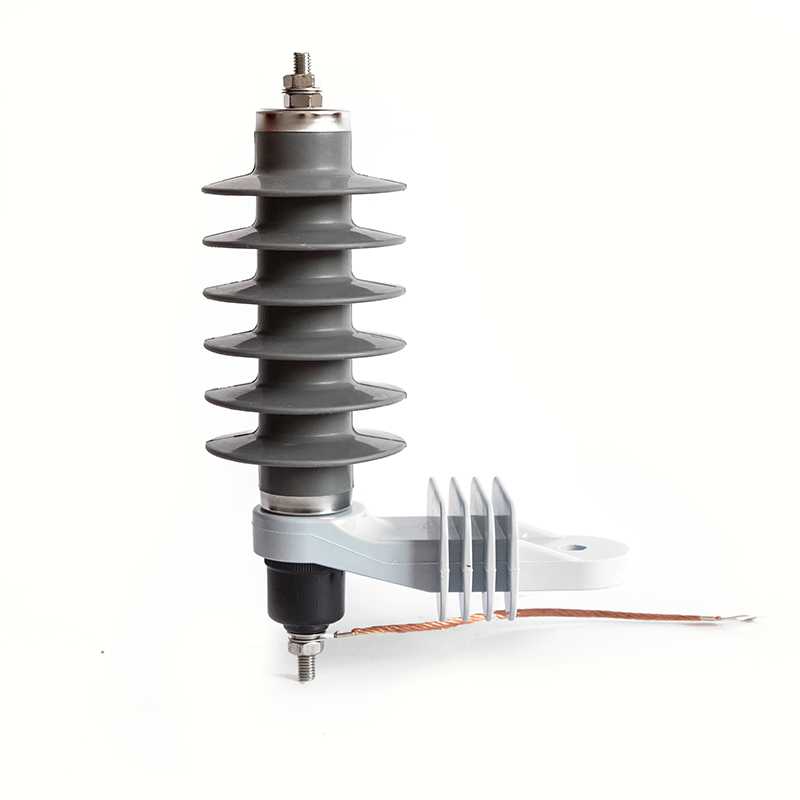

YH5W-6L 6kV Housed Metal-oxide Surge Arrester
Place of Origin: Zhejiang, China
Model Number: YH5W-3, YH5W-6, YH5W-9, etc.
Rated voltage(kV): 3kV~33kV
8/20µs lighting impulse residual volage (kV): 9kV~108kV
Share
| Model | Rated Voltage(kV) | Continuous operating voltage (kV ≥) | 1/4 μs Steep Current Impulse kV(crest) | 8/20 μs Lightning Current impulse kV(crest) | 30/60 μs Switching Current impulse kV(crest) | Long lmpulse Withstand Current 2000 us kA(crest) | 4/10 μs High Current Impulse Withstand kA(crest) |
| YH5W-3L | 3 | 2.55 | 9.5 | 9 | 7.7 | 100 | 65 |
| YH5W-6L | 6 | 5.1 | 19 | 18 | 15.4 | 100 | 65 |
| YH5W-9L | 9 | 7.65 | 28.5 | 27 | 23.1 | 100 | 65 |
| YH5W-12L | 12 | 10.2 | 38 | 36 | 30.8 | 100 | 65 |
| YH5W-15L | 15 | 12.7 | 47.5 | 45 | 38.5 | 100 | 65 |
| YH5W-18L | 18 | 15.3 | 57 | 54 | 46.2 | 100 | 65 |
| YH5W-21L | 21 | 17 | 66.5 | 63 | 53.9 | 100 | 65 |
| YH5W-24L | 24 | 19.2 | 76 | 72 | 61.6 | 100 | 65 |
| YH5W-27L | 27 | 21.9 | 85.5 | 81 | 69.3 | 100 | 65 |
| YH5W-30L | 30 | 24.4 | 95 | 90 | 76.5 | 100 | 65 |
| YH5W-33L | 33 | 26.8 | 104.5 | 99 | 84.7 | 100 | 65 |
| YH5W-36L | 36 | 29 | 114 | 108 | 92.4 | 100 | 65 |
| YH5W-42L | 42 | 34.1 | 132.3 | 126 | 100.1 | 100 | 65 |
